• Lamps, rear, stop/turn/backup (1-piece assembly) with license plate light
• Glass, solar absorbing, tinted
• Grille guard screen, insect protection (mounted behind grille)
• Antenna, fixed mast
• Spare tire delete (STD)
• Wheel, spare delete
• Door handles, Black
• Front fender extension, painted body color
• Lamps, cargo area, cab mounted with switch on center switch bank
• Tires, rear 225/70R19.5G highway blackwall Pirelli Max Axle Load: 15,000 lb. (Requires (XEY) Tires front 225/70R19.5G Highway blackwall Pirelli.) (STD)
• Tires, front 225/70R19.5G highway blackwall Pirelli Max Axle Load: 7,940 lb. (Requires (YEY) Tires, rear 225/70R19.5G highway blackwall Pirelli, Max Axle Load: 15,000 lb. or (YEZ) Tires, rear 225/70R19.5G traction blackwall Pirelli, Max Axle Load: 15,000 lb.) (STD)
• Lamps, Smoked Amber roof marker
• Headlamps, halogen projector-beam
• Paint, solid
• Assist Steps, aluminum
• Electrical Provisions, rear of cab, upfitter, body builder wiring includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
• Grille, chrome
• Tires, front 225/70R19.5G highway blackwall Pirelli Max Axle Load: 7,940 lb. (STD)
• Bumper, front chrome
• Wheels, 19.5" x 6.75", 4-aluminum wheels, 8-holes, hub piloted Dura-Bright finish is on the outside of the wheel
• Tires, rear 225/70R19.5G highway blackwall Pirelli Max Axle Load: 15,000 lb. (STD)
• Grille guard screen, stone protection (mounted to bumper)
• Summit White
• Oil seal for front hub, Chicago Rawhide Nitrile for oil lubricated wheel bearings
• License plate kit, front
• Spare tire delete (STD)
• Mirrors, outside, black, heated power-adjustable, high-visibility vertical camper-style, and lower convex spotter glass, manual-folding. Convex glass is not heated and not power adjustable. 102", Wide Load
• Mud Flaps, front

• Visors, driver and front passenger, vinyl
• Seat trim, Vinyl
• Speedometer, miles/kilometers
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Floor covering, Graphite-colored rubberized-vinyl
• Steering wheel, urethane
• Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• Steering column, manual Tilt-Wheel
• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information (Included and only available with (IO3) Audio System with 4.2" diagonal color display or (IOR) Chevrolet Infotainment System with 7" diagonal color touch-screen.)
• Mirror, inside rearview manual day/night
• Seat Belt, Black
• Dark Ash seats with Jet Black interior accents, Vinyl seat trim
• Power outlet, 110-volt AC
• Key system, 2 spare keys
• Remote Keyless Entry
• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• Windows, power with driver express up and down and express down on all other windows

• Front suspension, 7,500 lb. (3,402 kg) multi-leaf, includes shock absorbers
• Emissions, 50 state certification
• Exhaust system, right side exit, behind rear wheels (Requires (ED9) 165" wheelbase.)
• Alternator, 150 amps
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Axle, Open rear axle, non-locking rear
• Capped Fuel Fill
• Steering, power (Bosch S2 8014 Plus)
• Emissions, USA 50 State certified
• Incomplete vehicle
• Fuel, diesel B20
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Wheelbase, 165" (419.1 cm), 84" CA (Requires (F0C) 49" axle to end of frame, (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame and (NPR) right side exit exhaust, behind rear wheels. Requires (PCJ) Vocational Specific Heavy Suspension Package, when ordering (FTA) 7,000 lb. Front axle/(FK6) 7,000 lb. Front suspension or (FTL) 8,000 lb. Front axle/(FSN) 8,000 lb. Front suspension and/or (FU7) 15,500 lb. rear suspension.) (STD)
• Trailering provisions, trailering wire harness only, trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
• Rear axle, 4.30 ratio Max road speed: 75 MPH
• Front axle, 7,500 lb., Dana Spicer 60-256, single-reduction, front driving
• Axle lubricant, front, synthetic oil EmGard FE-75W-90
• Exhaust brake
• Four wheel drive
• Trailer brake controller, integrated
• Batteries, heavy-duty dual 1300 cold-cranking amps includes battery box mounted to left side under cab
• DPF, diesel particulate filter, manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• Axle to End of Frame, 63"
• Battery, top post threaded, battery jump start stud (located on battery box)
• Axle, limited slip, Dana Spicer Truetrac, torque proportioning limited slip
• Shock Absorbers, rear
• 30,000 lb. GCWR (13,607 kg)
• Fuel tank, front and rear, 65 gallon total
• Wheelbase, 165" (419.1 cm), 84" CA (STD)
• Rear axle, 4.30 ratio Max road speed: 75 MPH
• Rear axle, 15,500 lb. (7,031 kg), Dana Spicer S16-140, single reduction
• 5500 HD Series
• Rear suspension, 13,500 lb. (6,123 kg) multi-leaf, vari-rate
• GVWR, 19,500 lb. (8845 kg)
• Recovery hooks, front, frame-mounted, black
• Front stabilizer bar

• Work Truck Preferred Equipment Group includes standard equipment

• Daytime Running Lamps, with automatic exterior lamp control

• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera, display integrated into Radio (Shipped loose in cab for upfitter installation.)
• OnStar, delete
• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)
• Horn, dual-note

• StabiliTrak, Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
• Brake, parking, driveline park brake system
• Traction control

REAR AXLE, 4.30 RATIO

• Max road speed: 75 MPH

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

ELECTRICAL PROVISIONS, REAR OF CAB, UPFITTER, BODY BUILDER WIRING

• includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn

BATTERIES, HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS

• includes battery box mounted to left side under cab

SPARE TIRE DELETE

• (STD)

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

BATTERY, TOP POST THREADED, BATTERY JUMP START STUD

• (located on battery box)

MIRRORS, OUTSIDE, BLACK, HEATED POWER-ADJUSTABLE, HIGH-VISIBILITY VERTICAL CAMPER-STYLE, AND LOWER CONVEX SPOTTER GLASS, MANUAL-FOLDING.

• Convex glass is not heated and not power adjustable. 102"
• Wide Load

WHEELBASE, 165" (419.1 CM), 84" CA

• (STD)

DPF, DIESEL PARTICULATE FILTER, MANUAL REGENERATION

• customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

AUDIO SYSTEM, 4.2" DIAGONAL COLOR DISPLAY

• AM/FM stereo with USB port and auxiliary jack (STD)

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2500 rpm
• 750 lb.-ft. torque @ 1400 rpm (STD)

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1750RDS

• ratios 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 Rugged Duty Series

POWER TAKE OFF, ENGINE CONTROL PROVISIONS

• Access is available on left-hand and right-hand side

WHEELS, 19.5" X 6.75", 4-ALUMINUM WHEELS, 8-HOLES, HUB PILOTED

• Dura-Bright finish is on the outside of the wheel

GRILLE GUARD SCREEN, STONE PROTECTION

• (mounted to bumper)

TIRES, FRONT 225/70R19.5G HIGHWAY BLACKWALL PIRELLI

• Max Axle Load: 7
• 940 lb. (STD)

TIRES, REAR 225/70R19.5G HIGHWAY BLACKWALL PIRELLI

• Max Axle Load: 15
• 000 lb. (STD)

• KEY SYSTEM

• 2 SPARE KEYS

  WINDOWS

• POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS

  REMOTE KEYLESS ENTRY

  ASSIST STEPS

• ALUMINUM

  AXLE TO END OF FRAME

• 63"

  FRONT STABILIZER BAR

  OIL SEAL FOR FRONT HUB

• CHICAGO RAWHIDE NITRILE FOR OIL LUBRICATED WHEEL BEARINGS

  FRONT AXLE

• 7
• 500 LB.
• DANA SPICER 60-256
• SINGLE-REDUCTION
• FRONT DRIVING

  SHOCK ABSORBERS

• REAR

  AXLE

• LIMITED SLIP
• DANA SPICER TRUETRAC
• TORQUE PROPORTIONING LIMITED SLIP

  SUMMIT WHITE

  REAR SUSPENSION

• 13
• 500 LB. (6
• 123 KG) MULTI-LEAF
• VARI-RATE

  GVWR

• 19
• 500 LB. (8845 KG)

  DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS

• VINYL SEAT TRIM

  REAR AXLE

• 15
• 500 LB. (7
• 031 KG)

  ENGINE BLOCK HEATER

  POWER OUTLET

• 110-VOLT AC

  FUEL TANK

• FRONT AND REAR
• 65 GALLON TOTAL

  MUD FLAPS

• FRONT

  30

• 000 LB. GCWR (13
• 607 KG)

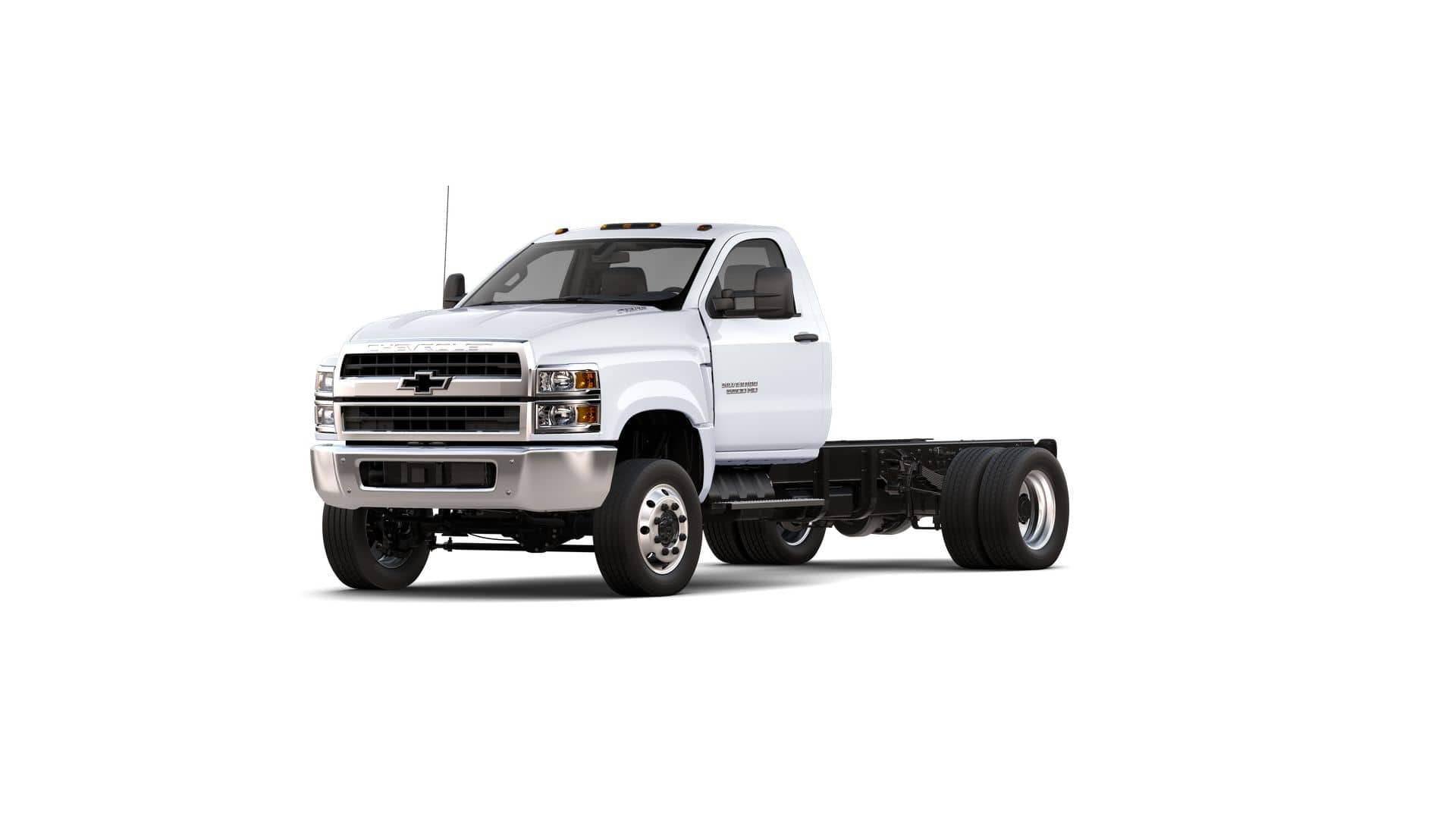

  5500 HD SERIES

  SINGLE-SLOT CD/MP3 PLAYER

  HORN

• DUAL-NOTE

  GRILLE

• CHROME

  BUMPER

• FRONT CHROME

  RECOVERY HOOKS

• FRONT
• FRAME-MOUNTED
• BLACK

  LICENSE PLATE KIT

• FRONT

  PAINT

• SOLID

• DriveType
• DriveType: Four Wheel Drive
• Fuel Economy
• City: 0
• Hwy: 0
• Combined: 0
• Fuel System
• Fuel System: Direct Injection
• Fuel Tank Capacity
• Fuel Tank Capacity: 65 gal
• Fuel Type
• Fuel Type: Diesel Fuel
• Horse Power
• Horse Power: 350
• Rear Wheel
• Rear Wheel: Dual
• Trailering Capacity
• Trailering Capacity: 0
